While working on my Pico-based handheld (https://savagechats.com/index.php?topic=295.0) I was considering the CrowPanel 3.5"-480*320 HMI Pico RP2040 Touchscreen. One of the troubles that I had with that was that there is no actual power switch - it remains on all the time - not good for long-time usage on battery. It hit me that maybe I don't actually need to turn the thing off, but rather just put it into a low-power mode.

First thing to try was to dim the display. So, BACKLIGHT 0, and that darkened the display. But was that actually off? So, while it was in low-backlight mode, I pulled the plug (I don't have the battery connected at this time) bingo - I could not see any difference between LCD off, and entire thing off.

So, wanting to see how much current the thing drew while the LCD was on, and off, I started looking for a USB cable that had (or I could make) a cut in the +Vcc wire. With that I would be able to wire in banana plugs for my DMM, to read Amps (or more accurately, mA  ) While searching on my favorite cash drain, I found these little USB DMMs (well voltage and current.) The best part is that they were two for $10, delivered (with Prime): https://www.amazon.com/dp/B0CJTJXWG1?ref=ppx_yo2ov_dt_b_fed_asin_title .

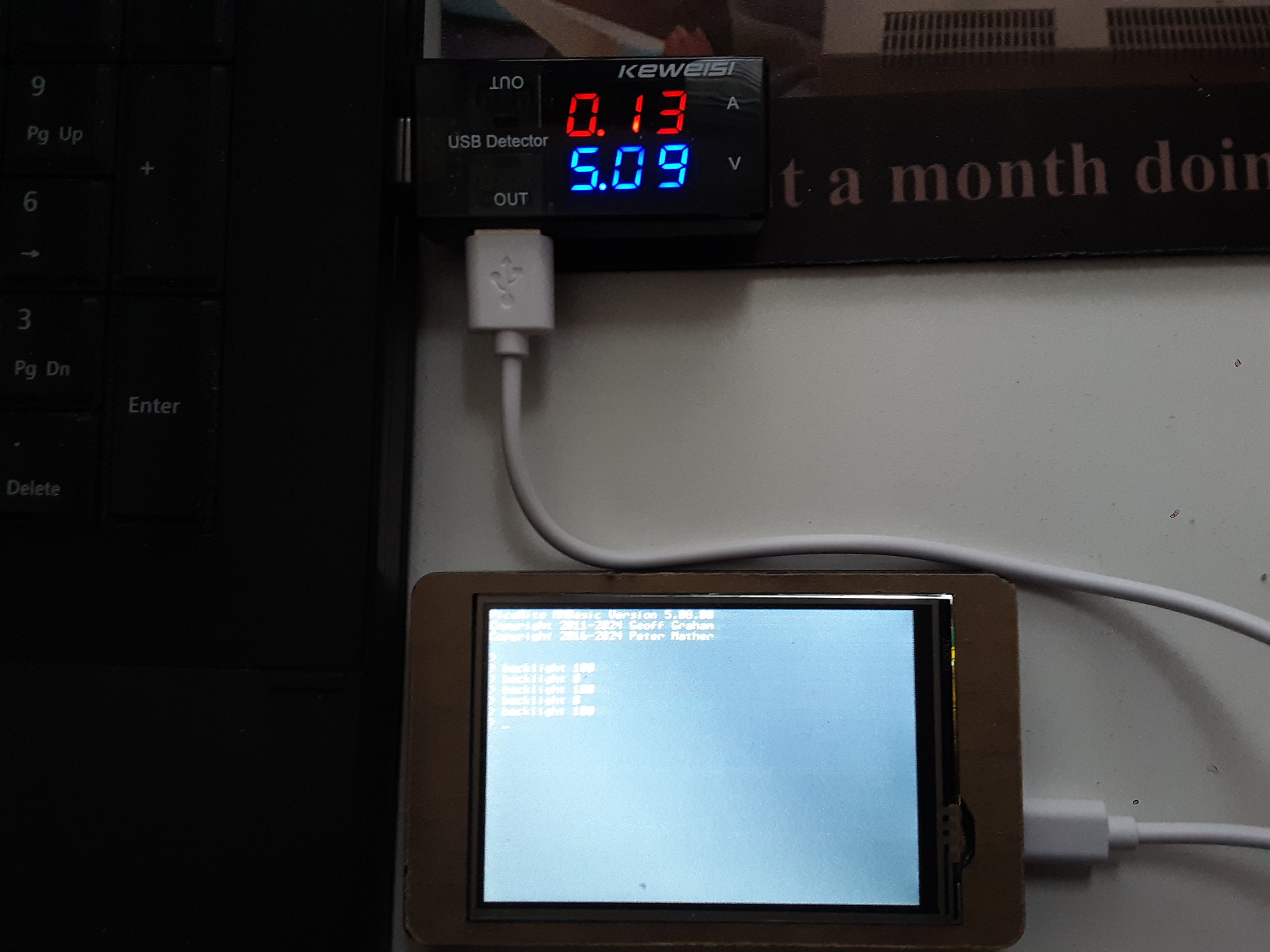

Here you can see the current draw while the display is at full on (BACKLIGHT 100):

You can see that the "handheld" display is on, and the ammeter shows a draw of 0.13A - yeah, this thing goes up to 3 full amps!

Here you can see the current draw while the display is at off (BACKLIGHT 0):

0.04A (or 40 mA) - not exactly low-power, but one-third the current of the display at full.

When I plugged the battery into the handheld, the current went up to 0.31 amps! Well, at least it is only while charging the battery, and not while in use.

Anyway - I wanted to let you guys know about these USB meters, at $5 each delivered (in twos,) they will come in handy for testing/playing with USB devices.

[Chris Savage]

Very informative, granz. I have several different USB meters from Amazon.

You cannot view this attachment.

Here are three, the fourth is at work, so I can't take a photo of it at the moment. I sometimes use them for testing USB device current / voltage, especially for various phone chargers.


You cannot view this attachment.

This one looks like yours, granz.


You cannot view this attachment.

This is the same brand, but only one port and LCD instead of LED display.


You cannot view this attachment.

This MakerHawk USB Multimeter has USB-C and some more advanced functions.

[JKnightandKARR]

https://www.lowes.com/pd/Klein-Tools-Lcd-Specialty-Meter/5014634539
This is what I have, though mine, wherever it is at the moment, is the older just Reg USB ver, it don't uave USB-C at all.  Works pretty well.

EDIT:https://www.kleintools.com/catalog/usb-digital-meters/usb-digital-meter-usb-type
This is the one I have.

[Chris Savage]

This is what I have, though mine, wherever it is at the moment, is the older just Reg USB ver, it don't uave USB-C at all.  Works pretty well.

The first two I posted don't have USB-C, but there's been a surge of everything having USB-C. My last three phones had USB-C. My new car has USB-C chargers AND the media plug. I've been using a USB Thumb Drive for years with my whole music collection on it. I had to order a USB-C Thumb Drive and then transfer the music to it, because my new car does NOT have a USB-A connector.

[JKnightandKARR]

This is what I have, though mine, wherever it is at the moment, is the older just Reg USB ver, it don't uave USB-C at all.  Works pretty well.

The first two I posted don't have USB-C, but there's been a surge of everything having USB-C. My last three phones had USB-C. My new car has USB-C chargers AND the media plug. I've been using a USB Thumb Drive for years with my whole music collection on it. I had to order a USB-C Thumb Drive and then transfer the music to it, because my new car does NOT have a USB-A connector.

Anymore alot does have USB-C, my Acer Nitro 5 and my ASUS motherboard in my desktop both have it, along with my Sony wireless headphones. Might not hurt to get a new one that does have USB-A/C ports.

[granz]

...You cannot view this attachment.

This MakerHawk USB Multimeter has USB-C and some more advanced functions.

That MakerHawk looks like a great meter. But, when I went to the URL that you provided, Amazon has another option - one that goes out to 4 places past the decimal point (tenths of a volt, and tenths of a volt - better for low-power wearable stuff.) It's $35, but much better specs. I sold the Epson notebook, so as soon as I get the money in my bank, I will be ordering that one.

While the FNB48 is much better specs, I am not disappointed in the Keweisi meters - they are incredibly low cost (one seventh the cost,) and do what they claim to do.

[Chris Savage]

While the FNB48 is much better specs, I am not disappointed in the Keweisi meters - they are incredibly low cost (one seventh the cost,) and do what they claim to do.

That's why I have a mix...sometimes you just need quick and easy. Sometimes you need more.
